Massey Hall is an internationally recognized venue for concerts and lectures, and also hosts events ranging from weddings to boxing matches, to chess tournaments. Uni-Systems Engineering designed and supplied a system to easily reconfigure the main seating area to accommodate each type of gathering.

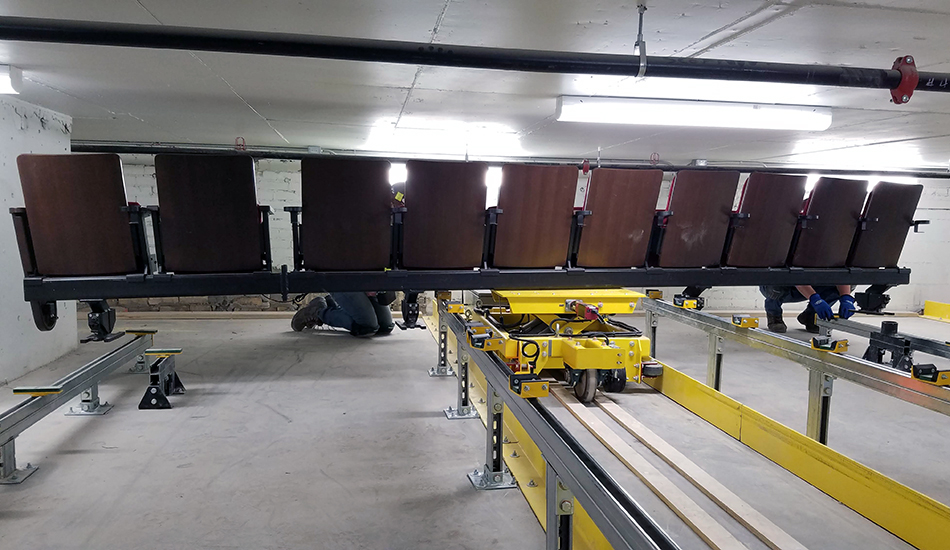

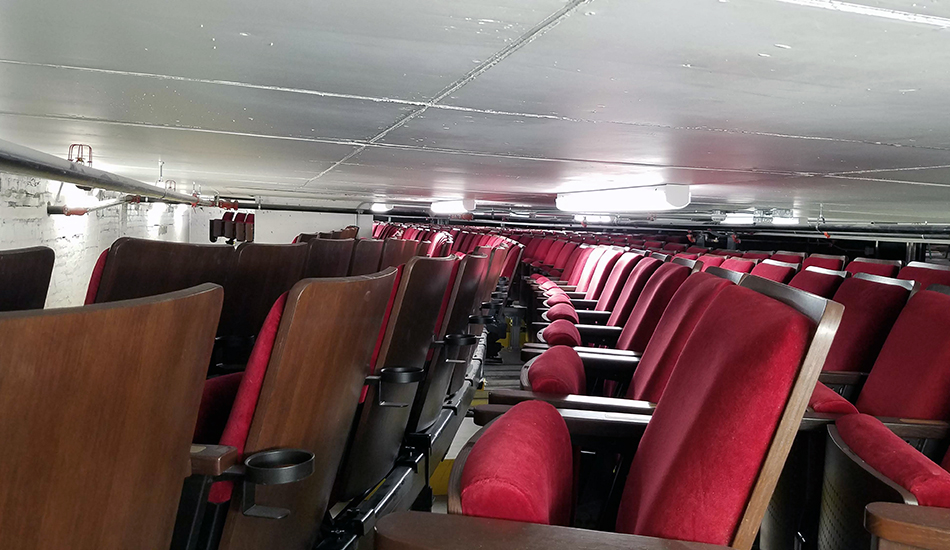

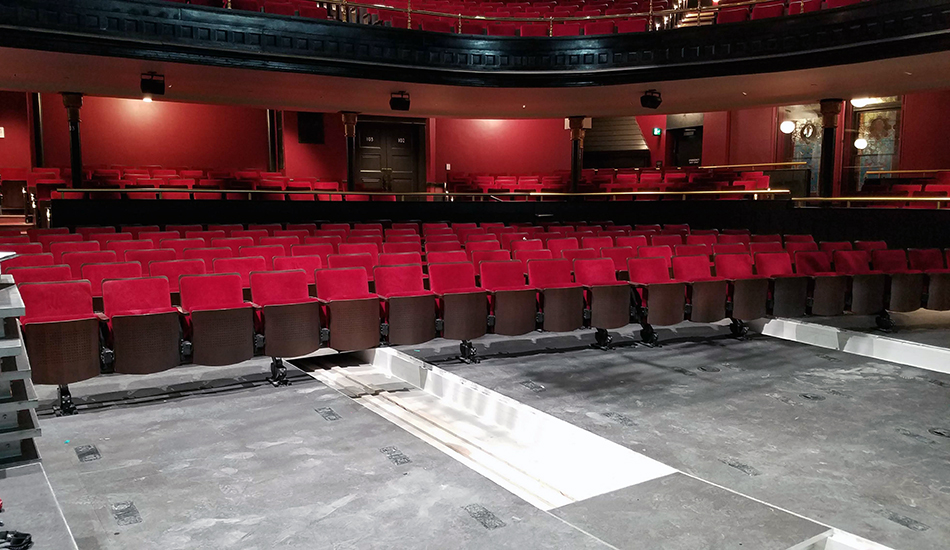

When deployed, Massey Hall Theater’s mechanized seating accommodates traditional theater audiences. The 470 seats are driven to a small storage space under the stage to provide a clear floor area for non-theater events. Four trenches run from the storage area under the stage to the back of the theater’s main floor. A tractor travels within each trench, moving a section of seating between the stored and deployed positions, one row at a time. Each row of seats is secured to the tractor by a mechanized lock, and is lifted by a 5,000 lb. electric cylinder actuator with a 0.5 HP motor. The tractor is driven within the sloped trench by a 1 hp. electric motor chain drive system. A millimeter-precision optical reader and barcode ensures each row of seats is positioned in the correct location. Once in position, the seats are lowered by the tractor, and secured in place by rotating locks that engage with loops embedded in the floor.
Location: Toronto, Ontario, Canada
Scope of Work: Design and Supply
Client: The Corporation of Massey Hall and Roy Thomson Hall
Architect: KPMB Architects
Project Manager: EllisDon Corporation
